WINDSOR LO-PROFILE CABINETS

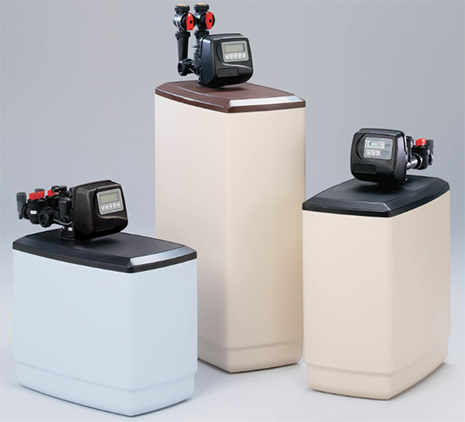

The Windsor Lo-Profile (LP) series cabinets feature a blow molded cabinet and two injection molded covers designed to leave the valve exposed for easy adjustment and viewing. The cabinet design also allows the valve to be oriented to fit the installation: to the front, back, left or right. Available in three models, the cabinet are sized to fit 18″, 24″ and 35″ tall mineral tanks with out a base.
Their unique design makes the Windsor LP series easy to assemble, reducing labor costs. The cabinet body features a molded push-up that holds the bottom of the mineral tank in place without the need for a retaining plate. the molded cabinet top allows the neck of the mineral tank to snap into place, securing it for shipment.
The large salt port opening allows easy filling of rock or block salt. The injection molded salt port lid is easy to handle and locks securely in place.
Cabinets are available in almond and white with black or brown covers. An optional injection molded grid is available.
Windsor LP-18 Cabinet
| ORDER NUMBER | DESCRIPTION |
|---|---|
| G2726LP | Windsor LP-18 Almond / Brown Cover |
| G2726LP-01 | Windsor LP-18 Almond / Black Cover |
| G2727LP | Windsor LP-18 White / Brown Cover |
| G2727LP-01 | Windsor LP-18 White / Black Cover |
The Windsor LP-18 Cabinet accepts 18″ tall mineral tanks less base.
Resin Capacity:
8×18 mineral tank (full): 0.47 ft³
8×18 (50% freeboard): 0.31 ft³
Salt Capacity:
Cabinet salt capacity: 125 lbs.
Cabinet salt capacity with grid: 100 lbs.
Windsor LP-24 Cabinet
| ORDER NUMBER | DESCRIPTION |
|---|---|
| G2729LP | Windsor LP-24 Almond / Brown Cover |
| G2729LP-01 | Windsor LP-24 Almond / Black Cover |
| G2730LP | Windsor LP-24 White / Brown Cover |
| G2730LP-01 | Windsor LP-24 White / Black Cover |
The Windsor LP-24 Cabinet accepts 24″ tall mineral tanks less base.
Resin Capacity:
7×24 mineral tank (full): 0.51 ft³
7×24 (50% freeboard): 0.34 ft³
Salt Capacity:
Cabinet salt capacity: 175 lbs.
Cabinet salt capacity with grid: 150 lbs.
Windsor LP-35 Cabinet
| ORDER NUMBER | DESCRIPTION |
|---|---|
| G2723LP | Windsor LP-35 Almond / Brown Cover |
| G2723LP-01 | Windsor LP-35 Almond / Black Cover |
| G2724LP | Windsor LP-35 White / Brown Cover |
| G2724LP-01 | Windsor LP-35 White / Black Cover |
The Windsor LP-35 Cabinet accepts 35″ tall mineral tanks less base.
Resin Capacity:
10×35 mineral tank (full): 1.36 ft³
10×35 (50% freeboard): 1.0 ft³
Salt Capacity:
Cabinet salt capacity: 250 lbs.
Cabinet salt capacity with grid: 225 lbs.
Salt capacities are great when using 7″, 8″ and 9″ diameter mineral tanks.
