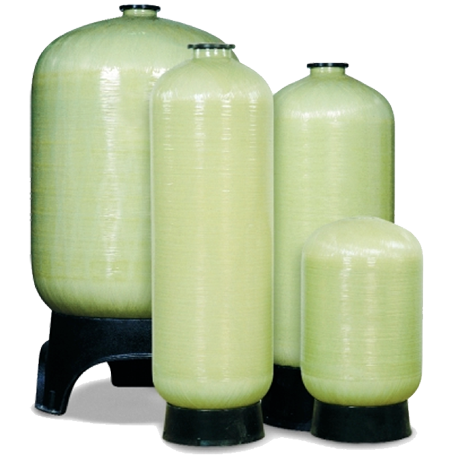

Composite Vessels

The non-corrosive, cost-effective solution for commercial/industrial water treatment and storage. Structural Composite Pressure Vessels offer fiberglass construction for outstanding performance and durability in harsh chemical enviroments. With capacities up to 1600 gallons and a variety of options, we can tailor a vessel to meet your needs. All Structural Composite Vessels are warranted for 5 years.

FEATURES & BENEFITS

  • 100% composite fiberglass construction
  • Outstanding performance and durability in harsh chemical environments
  • Absolutely will not – and cannot – rust
  • Requires little or no maintenance
  • Capacities up to 2500 gallons
  • Factory-backed 5-year warranty
  • Materials of construction
    • Polyethylene inner shell

SPECIFICATIONS

Pentair

  • Safety factor: 4:1
  • Minimum burst at 600psi
  • Tested to 250,000 cycles without leakage

NSF

  • Safety factor: 4:1
  • Minimum burst at 600 psi
  • Tested to 100,000 cycles without leakage

ASME

  • Top/bottom flange
    • Safety factor: 5:1
    • Minimum burst at 750 psi
    • Tested to 33,000 cycles without leakage
  • Top/bottom flange
    • Safety factor: 6:1
    • Minimum burst at 900 psi
    • Tested to 100,000 cycles without leakage

Maximum operating pressure: 150 psi
Maximum operating temperature: 150° F (flanged), 120° F (threaded)

CERTIFICATIONS

  • Vessels Tested and Certified by NSF International to NSF/ANSI Standard 61 for material and structural integrity requirements.
