WINDSOR HI-PROFILE CABINETS

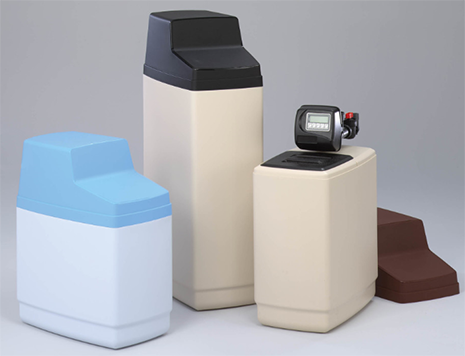

The Windsor HI-Profile (HP) series cabinets feature a blow molded cabinet and a one piece injection molded cover designed to accommodate a majority of today’s control valves. Available in three sizes, the cabinets are designed to fit 18″ 24″ and 35″ tall mineral tanks without a base.

Their unique design makes the Windsor HP series easy to assemble, reducing labor costs. The cabinet body features a molded push-up that holds the bottom of the mineral tank in place without the need for a retaining plate. the molded cabinet top allows the neck of the mineral tank to snap into place, securing it for shipment.

The large salt port opening allows easy filling of rock or block salt. The blow molded salt port lid has an integrated handle for a sure grip.

Cabinets are available in almond and white with black, brown or light blue covers. An optional injection molded grid is available.



Windsor HP-18 Cabinet

ORDER NUMBER DESCRIPTION
G2726HP Windsor HP-18 Almond / Brown Cover
G2726HP-01 Windsor HP-18 Almond / Black Cover
G2727HP Windsor HP-18 White / Brown Cover
G2727HP-01 Windsor HP-18 White / Black Cover
G2730HP-02 Windsor HP-18 White / Light Blue Cover

The Windsor HP-18 Cabinet accepts 18″ tall mineral tanks less base.
Resin Capacity:
9×18 mineral tank (full): 0.52 ft³
9×18 (50% freeboard): 0.34 ft³
Salt Capacity:
Cabinet salt capacity: 100 lbs.
Cabinet salt capacity with grid: 75 lbs.



Windsor HP-24 Cabinet

ORDER NUMBER DESCRIPTION
G2729HP Windsor HP-24 Almond / Brown Cover
G2729HP-01 Windsor HP-24 Almond / Black Cover
G2730HP Windsor HP-24 White / Brown Cover
G2730HP-01 Windsor HP-24 White / Black Cover
G2730HP-02 Windsor HP-24 White / Light Blue Cover

The Windsor HP-24 Cabinet accepts 24″ tall mineral tanks less base.
Resin Capacity:
9×24 mineral tank (full): 0.74 ft³
9×24 (50% freeboard): 0.50 ft³
Salt Capacity:
Cabinet salt capacity:
150 lbs.
Cabinet salt capacity with grid: 125 lbs.



Windsor HP-35 Cabinet

ORDER NUMBER DESCRIPTION
G2723HP Windsor HP-35 Almond / Brown Cover
G2723HP-01 Windsor HP-35 Almond / Black Cover
G2724HP Windsor HP-35 White / Brown Cover
G2724HP-01 Windsor HP-35 White / Black Cover
G2724HP-02 Windsor HP-18 White / Light Blue Cover

The Windsor HP-24 Cabinet accepts 24″ tall mineral tanks less base.
Resin Capacity:
10×35 mineral tank (full): 1.36 ft³
10×35 (50% freeboard): 1.0 ft³
Salt Capacity:
Cabinet salt capacity:
 250 lbs.
Cabinet salt capacity with grid: 225 lbs.
Salt capacities are great when using 7″, 8″ and 9″ diameter mineral tanks.
