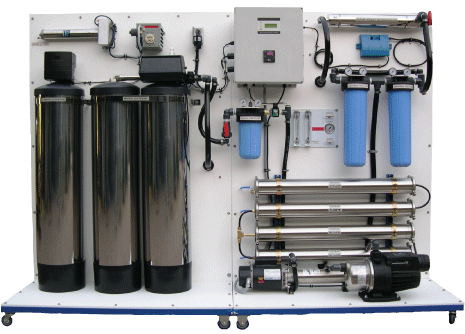

REVERSE OSMOSIS SYSTEM
Model: FS (Filtration Station)
1,600 to 7,200+ GPD
STANDARD FEATURES
- Reverse Osmosis Membrane
- Twin tank water softener w/auto backwash
- Carbon filter w/auto backwash
- 24gpm ultraviolet water sterilizer, s.s.
- 1hp s.s. repressurization
- Powder-coated steel frame w/ casters
- Stainless steel multi-stage pump
- Stainless steel membrane vessel
- Adjstbl. waste & recycle s.s. needle valves
- Product / waste flow meters
- 5 micron pre-filter
- Two 20″ GAC carbon block post-filter
- Pre and post-filter gauges
- System psi gauge
- Stainless steel pre-treatment jackets
- Marine-grade back panels
- Two 300 gallon water storage tank
STANDARD ELECTRICAL CONTROLS:
- 4-line LCD display
- Keypad
- Menu system
- Temperature display
- TDS monitor with probe
- Tank full
- Low pressure
- Hour meter
- Time delay start
- System ON / OFF
- Dual-level control
- Fully-fused
OPTIONS:
- Nanofiltration Membrane
- Blending valve
- Throttle valve
- Recycle flow meter
- 20″ BB pre-filter
- 3phase motor w/IEC
- 50hz Motor
- Auto hourly flush
- Feed water TDS monitor
- Pre-treatment lock-out
- Product diversion
- Permeate purge
- Hi-pressure cut-off
- Ozone
MODEL | GPD | FEED TDS 2,000 |
MEMBRANE 4″X40″ QTY |
HP MOTOR |
OPERATING PRESSURE |
RECOVERY RATE |
|
---|---|---|---|---|---|---|---|
BELOW | ABOVE | ||||||
FS-1S FS-1 |
1,800+ 1,600+ |
X | 1 1 |
.75hp 1.5hp |
150psi 200psi |
50-70% | |
X | |||||||
FS-2S FS-2 |
3,600+ 3,170+ |
X | 2 2 |
.75hp 1.5hp |
150psi 200psi |
50-70% | |
X | |||||||
FS-3S FS-3 |
5,400+ 4,750+ |
X | 3 3 |
.75hp 1.5hp |
150psi 200psi |
50-70% | |
X | |||||||
FS-4S FS-4 |
7,200+ 6,340+ |
X | 4 4 |
2hp 3hp |
150psi 200psi |
50-70% | |
X |
POWER REQUIRED:
220V/ 60hz, 17 amp, 1Ø and 120v 60hz, 5 amp,
FEED WATER PARAMETERS:
- Temperature: 85° F maximum
- Pressure: 40 – 80 psi maximum
- TDS: 2000-5000 ppm maximum (Consult Dealer for specific model)
- Iron tolerance: 0.5 ppm maximum
- Hydrogen sulfide: must be removed
- Silica tolerance: can not be higher than 100 ppm in the concentrate stream.
(Antiscalant should be considered for any levels over 75 ppm) - Turbidity: should be removed
- Hardness: must be removed
OPERATING PARAMETERS:
- Operating pressure: 150 – 200 psi maximum
- Water recovery: up to 70% and is field adjusted by customer.
(It is not recommended that the recovery be set higher than 70%) - pH range: 3 – 11
- Flow rates are determined by the membrane mfg.’s. testing criteria of 1500 ppm Nacl solution, 77°F water temperature, 225 psi at 10-15% recovery. Typical membrane salt rejection is 95-99%
*Actual flow rates may vary depending on the pre-treatment used, water conditions, feed water temperature and applied pressure, etc.
