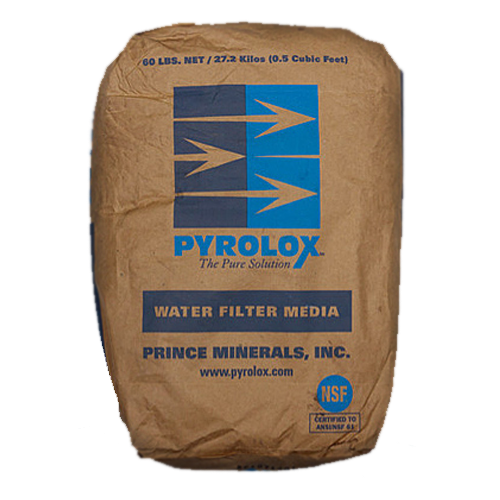

Pyrolox®

Pyrolox® is a mined ore and it effectively reduces iron, sulfur and manganese from problem water.

DESCRIPTION

A naturally mined ore, Pyrolox® is a mineral form of manganese dioxide which has been used in water treatment for more than 75 years. Pyrolox® is a granular filtration media for hydrogen sulfide, iron and manganese reduction. Pyrolox® functions as a catalyst, but itself remains relatively unchanged.

Pyrolox® works on a principle whereby the hydrogen sulfide, iron and manganese are oxidized and trapped on the media while simple backwashing cleans the bed. No chemical regeneration is required, nothing is imparted into the drinking water and Pyrolox® has a high capacity for low contaminant concentrations.

Pyrolox® can be used in conjunction with aeration, chlorination, ozone or other pretreatment methods for difficult applications. Chlorine or other oxidants accelerate the catalytic reaction.

Because of its heavy weight, it is very important that Pyrolox® filters are backwashed properly to insure adequate bed expansion and continued service life.

(back to top)

ADVANTAGES

Effective reduction of iron, sulfur and manganese
Durable material with long service life and low annual attrition of bed
No chemical regeneration required only periodic backwashing

(back to top)

PHYSICAL PROPERTIES

Color: black
Bulk Density: 125 lbs./cu. ft.
Mesh Size: 8 x 20
Effective Size: 0.51 mm
Uniform Coefficient: 1.7
Specific Gravity: 3.8

(back to top)

CONDITIONS FOR OPERATION

pH: 6.5-9.0
Bed depth: application dependent
Backwash flow rate: 25-30 gpm per sq. ft.
Backwash expansion: 15-30% of bed depth
Service flow rate: 5 gpm/ sq. ft.
Freeboard: 40% of bed depth (min.)

(back to top)

FLOW RATE
Service Flow Pressure Drop and Backwash Bed Expansion charts to be added later. Check back for updates.

(back to top)

ORDER INFORMATION

Part No.

Description

Cu.Ft./Bag

Wt./Cu.Ft.*

Bags/
Pallet

Weight/
Pallet

Pallet Dim.

A8004

Prolox®

0.4 (50 lbs.)

125 lbs.

80

4050 lbs.

44″x44″x50″

(back to top)

STANDARDS

N/A

(back to top)

Pyrolox® is a trademark of American Materials
