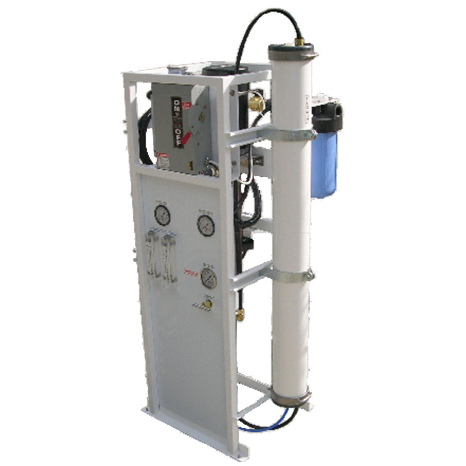

Economy Frame Mount

REVERSE OSMOSIS EQUIPMENT

PRODUCTION: 1,800 to 10,800 GPD
OPERATING PRESSURE: 200 PSI

STANDARD FEATURES

  • Powder-coated steel frame
  • Stainless steel multi-stage pump
  • Thin film composite membrane
  • Stainless steel membrane vessel
  • High-pressure nylon tubing
  • Liquid-filled high pressure gauge
  • Feed water inlet solenoid valve
  • Adjustable waste needle valve, s.s.
  • 10″ 5 micron BB pre-filter
  • High-pressure brass comp. fittings
  • Feed water inlet solenoid valve
  • Up to 60% feed flow recovery rate

STANDARD ELECTRICAL CONTROLS:

  • Fused Off/On safety switch
  • Float switch to protect from low/no feed water pressure
  • 30 amp motor contactor
  • 110v-60hz or 220v-60hz

OPTIONS:

  • Product and waste flow meters
  • TDS digital monitor, panel mounted
  • Pre-filter IN & OUT gauges, liquid-filled
  • Recycle valve (requires waste flow meter)
  • Tank pressure switch
  • 50hz electrical
  • Shipping crate

FEED WATER PARAMETERS:

  • Temperature 85° F maximum
  • Pressure 40 – 80 psi maximum
  • TDS 2000 ppm maximum, if higher, consult factory
  • Iron tolerance 0.5 ppm maximum
  • Hydrogen sulfide must be removed
  • Silica tolerance can not be higher than 125 ppm in the concentrate stream. Antiscalant should be considered for any levels over 75 ppm.
  • Turbidity should be removed
  • Hardness must be removed

OPERATING PARAMETERS:

  • Operating pressure 200 psi maximum
  • Water recovery up to 60% and is field adjusted by customer. It is not recommended that the recovery be set higher than 50%. Only under certain conditions can the recovery be set higher.
  • pH range 3 – 11
  • Flow rates are determined by the membrane mfgrís. testing criteriea of 1500 ppm Nacl solution, 77°F water temperature, 225 psi at 10-15% recovery. Typical membrane salt rejection is 95-99%

*Actual flow rates may vary depending on the pre-treatment used, water conditions, feed water temperature and applied pressure, etc.

MODEL *GPD MEMBRANE MOTOR PIPING
inlet waste prod
DIMENSIONS
ECFMV-1 1,800~2,000 4″x40″ 1ea. 1.5 HP 1″ 1/2″ 1/2″ 24″ X 29″ 53″H
