Compact

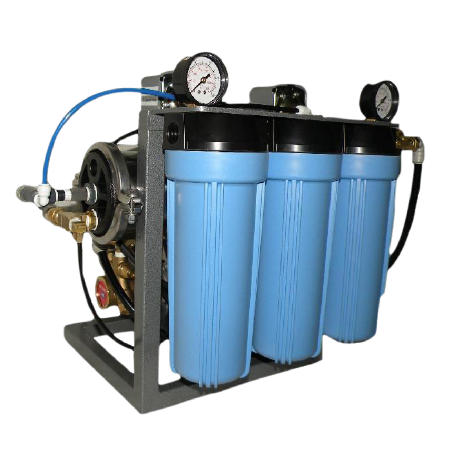

REVERSE OSMOSIS EQUIPMENT
MODEL: COMPACT

PRODUCTION: 150, 250, 450, 800 GPD
OPERATING PRESSURE: 200 PSI

COMMERICIAL APPLICATION – FOOD AND BEVERAGE – MANUFACTURING – AGRICULTURE – MANY MORE

STANDARD FEATURES

  • Thin film composite membrane
  • Stainless steel membrane vessel
  • Powder-coated steel frame
  • Liquid-filled system pressure gauge
  • Inlet/Outlet pre-filter gauges
  • Fixed waste / recycle flow controls, stainless steel
  • High-pressure nylon tubing
  • High-pressure brass comp. fittings
  • Storage tank pressure switch
  • Feed water inlet solenoid valve
  • Feed water low pressure switch
  • Rotary vane pump
  • 1/2 hp motor (150-450 gpd)
  • 3/4 hp motor (800 gpd)
  • 10″ 5 micron sediment pre-filter (1)
  • 10″ carbon block pre-filters (2)
  • 110 volt – 50/60hz

OPTIONS:

  • Float switch for atmospheric storage tank
  • 220 volt – 50/60hz

FEED WATER PARAMETERS:

  • Temperature 85o F maximum
  • Pressure 40 – 80 psi maximum
  • TDS 2000 ppm maximum. If higher, consult factory
  • Iron tolerance 0.5 ppm maximum
  • Hydrogen sulfide must be removed
  • Silica tolerance can not be higher than 125 ppm in the concentrate stream. Antiscalant should be considered for any levels over 75 ppm
  • Turbidity should be removed
  • Hardness over 10gpg should be softened
  • OPERATING PARAMETERS:

    • Operating pressure 200 psi maximum
    • Water recovery is factory set at 33 – 35%
    • pH range 3 – 11
    • Flow rates are determined by the membrane mfgrís. testing criteria of 1500 ppm Nacl solution, 77oF water temperature, 225 psi at 10-15% recovery. Typical membrane salt rejection is 95ó99%. Actual flow rates may vary depending on the pre-treatment used, water conditions, system size, membrane array and applied pressure.
