Filter-Ag®

Filter-Ag® is a non-hydrous silicon dioxide media which can be used as highly efficient filter media for the reduction of suspe

DESCRIPTION

Filter-Ag® has many outstanding advantages over the more common granular filter medias used for suspended solids reduction. Its fractured edges and irregular surface provides a high surface area and complex flow path for efficient removal of suspended matter through out the filter bed, typically reducing suspended solids down to the 20-40 micron range. Filter-Ag’s larger particle size creates less pressure loss through the filter and allows deeper sediment penetration into the bed for higher sediment loading and longer filter runs. This large and irregular shape prevents the screening and caking of sediment in the top several inches of the filter bed as happens in the typical sand filter, thus preventing a rapid build up of headloss and blinding problems. Filter-Ag’s light weight means lower backwash rates and better bed expansion to release trapped sediment and rinse the filter media during the backwash cycle. This ideal combination of particle shape, size and density make it a good choice where quality water filtration and water conservation are important.

Although not intended to be an iron reduction media, extensive field experience has shown Filter-Ag’s rough and jagged surface to be very good at entrapping the fragile iron flock that forms after dissolved iron has been oxidized. The fragmented edges are apparently good flock collection points for the precipitated iron. Typical oxidation methods include aeration, ozonation and chlorination.

Substantial savings can be realized when designing a system using Filter-Ag®. Its low pressure drop, high service flow rates and high bed loadings combined with lower backwash rates allow economy in equipment downsizing and reduced pumping requirements. Its light apparent density also saves on handling expense and shipping costs.

Filter-Ag® can be applied to systems designed for either pressure or gravity flow. Because of its unique density, Filter-Ag® can also be used in multi-media (graded density) filter designs allowing a more flexible approach to difficult filtration problems.

(back to top)

ADVANTAGES

There is less pressure loss through a bed of Filter-Ag® than through most other filter medias
Light weight requires lower backwash rates than those required for other filter medias
High service rates result in lower equipment costs and a savings in space
High sediment reduction capacity results in longer filter runs, with a substantial savings in backwash water and time out of service
Reduced shipping cost due to light weight/cu. ft.
Replacement of sand with Filter Ag® in existing installations may increases filter capacity 100% or more.
(Caution should be taken upon start-up that the lightweight Filter-Ag® is not washed to drain.)

(back to top)

PHYSICAL PROPERTIES

Color: Light grey to near white
Bulk Density: 24-26 lbs./cu. ft.
Specific Gravity: 2.25 gm/cc
Mesh Size: 12 x 30
Effective Size: 0.67 mm
Uniform Coefficient: 1.8
Hardness: 6 (Mohs scale)

(back to top)

CONDITIONS FOR OPERATION

Water pH range: wide range
Maximum water temperature: 140°F/60°C
Bed depth: 24-36 in.
Freeboard: 50% of bed depth (min.)
Service flow rate: 5 gpm/sq. ft., although considerably higher rates are often used
Backwash flow rate: 8-10 gpm/sq. ft.
Backwash bed expansion: 20-40% of bed depth
*Upon installation allow bed to soak overnight before backwashing

(back to top)

FLOW RATE
Service Flow Pressure Drop and Backwash Bed Expansion charts to be added later. Check back for updates.

(back to top)

ORDER INFORMATION

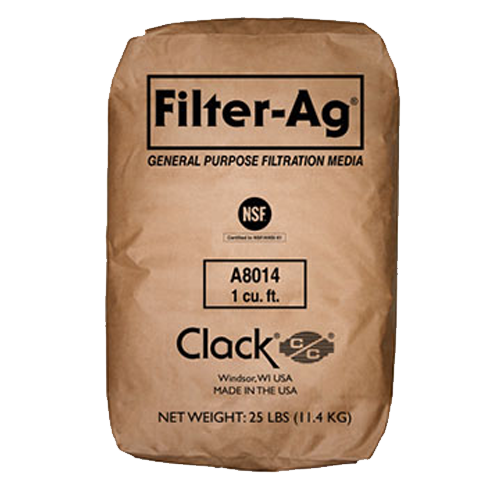

Part No. A8014
Description: Filter-Ag®
Cu.Ft./Bag: 1
Wt./Cu.Ft.*: 25 lbs.
Bags/Pallet: 70
Weight/Pallet: 1800 lbs.
Pallet Dim: 48″x40″x64″

(back to top)

STANDARDS
Drinking Water Treatment System Components Classified by Underwriters Laboratories Inc.® in Accordance with Standard ANSI/NSF 61-(1991)-57Y3.
